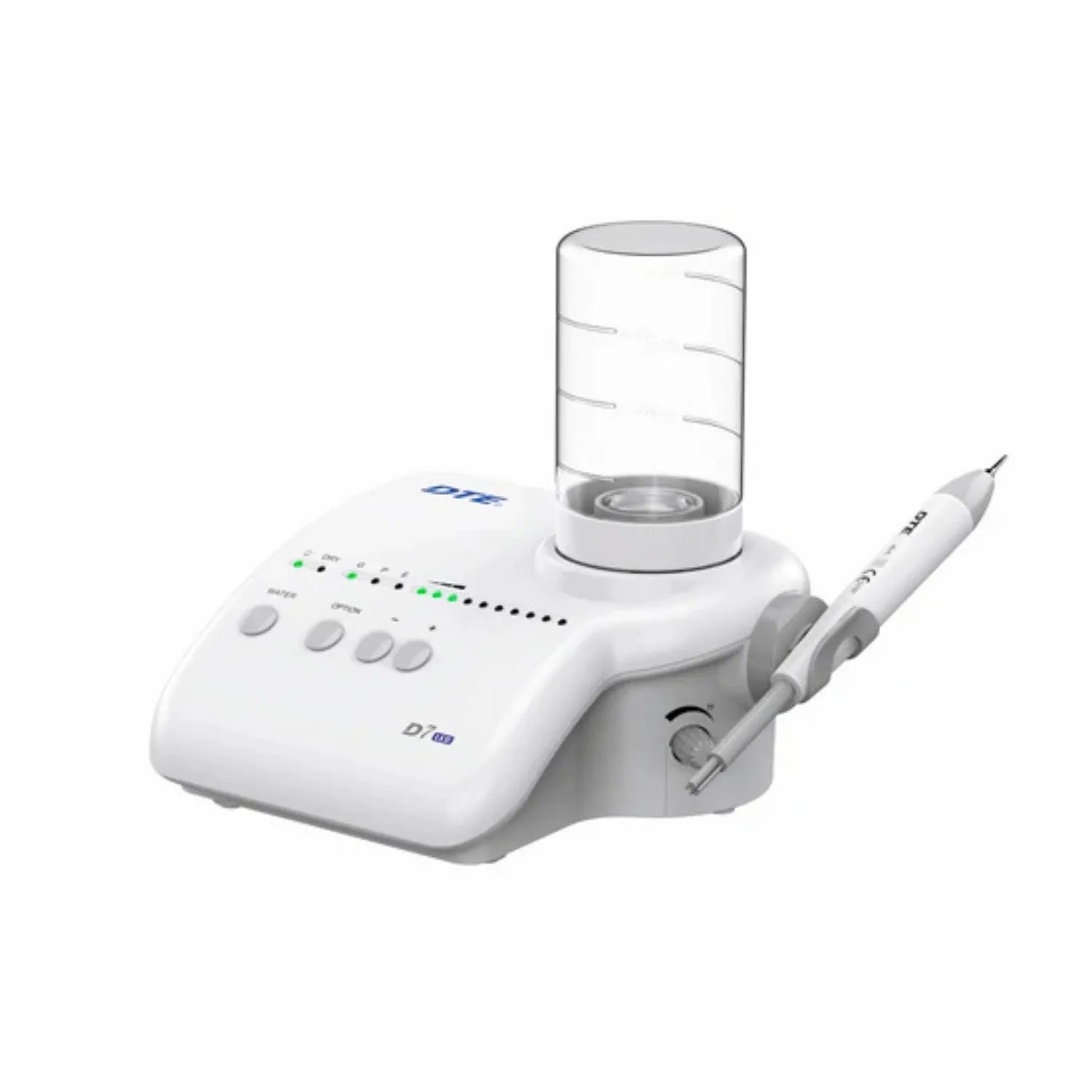

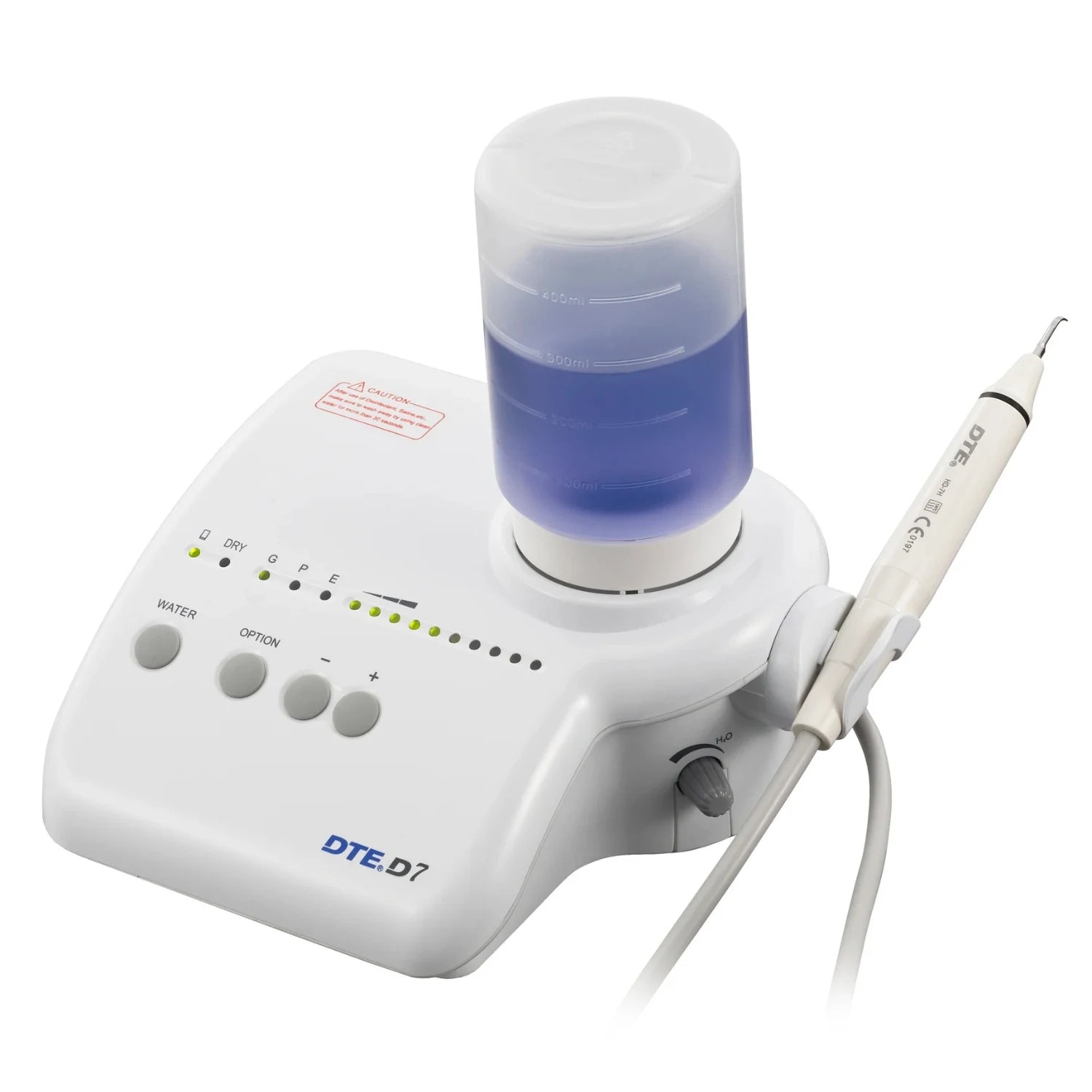

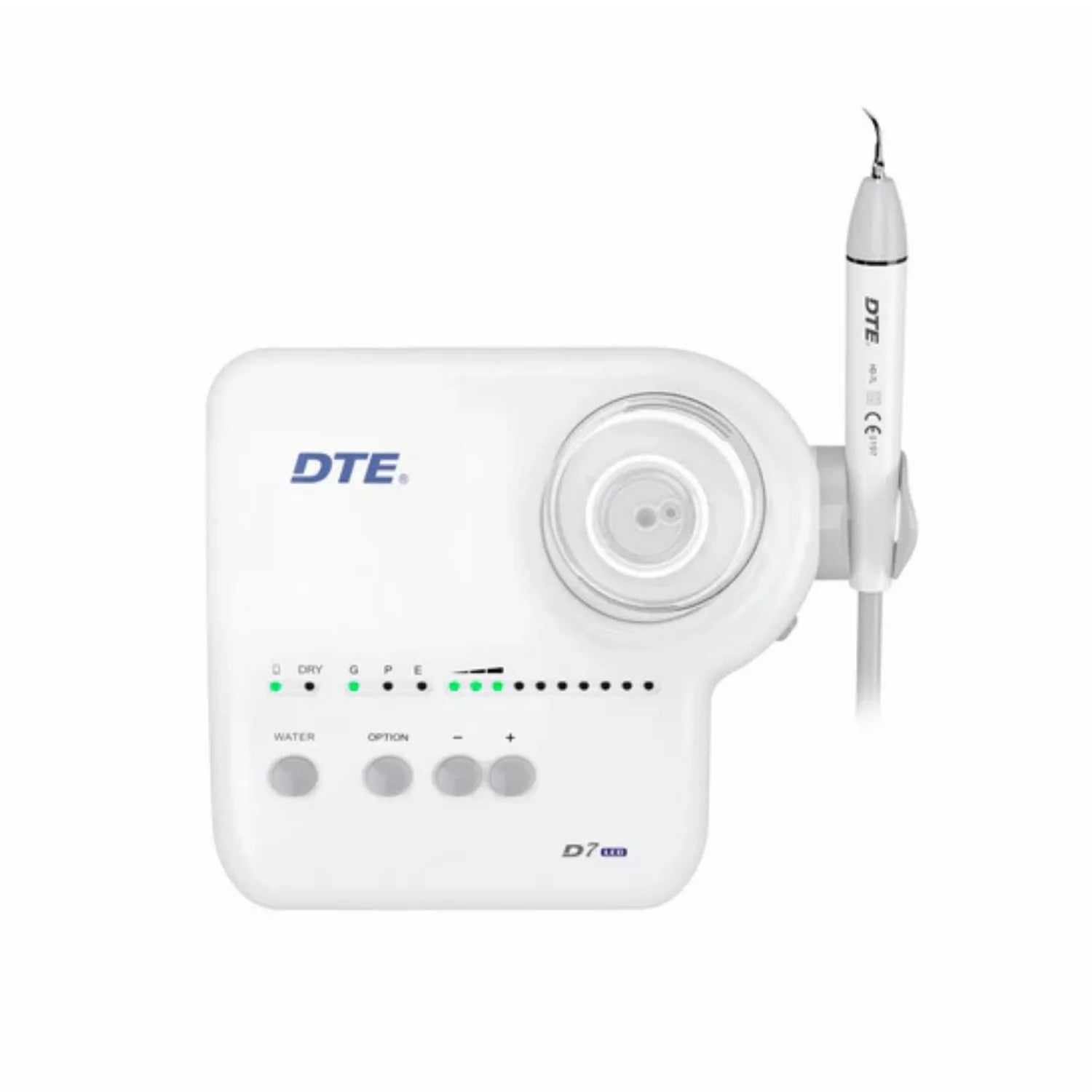

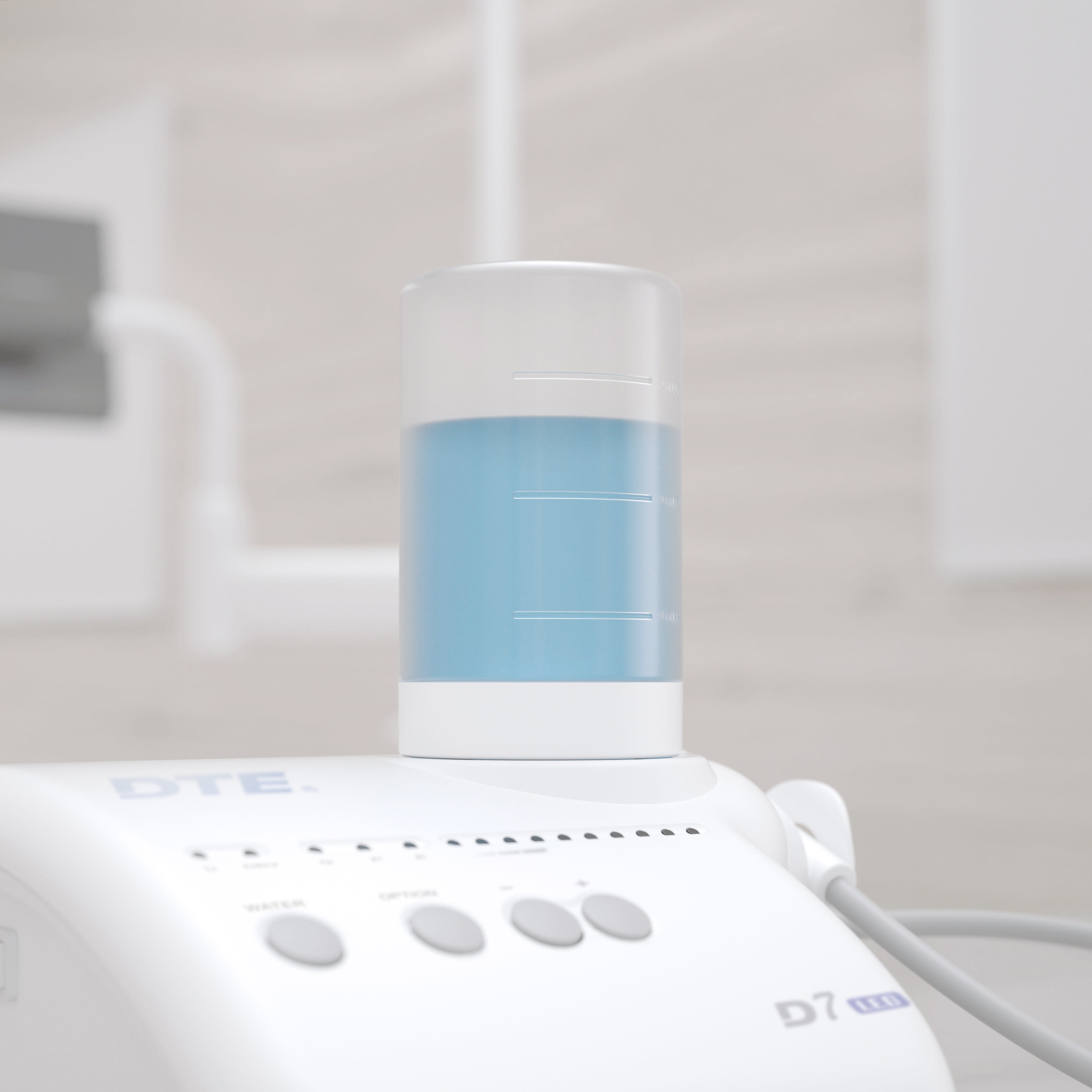

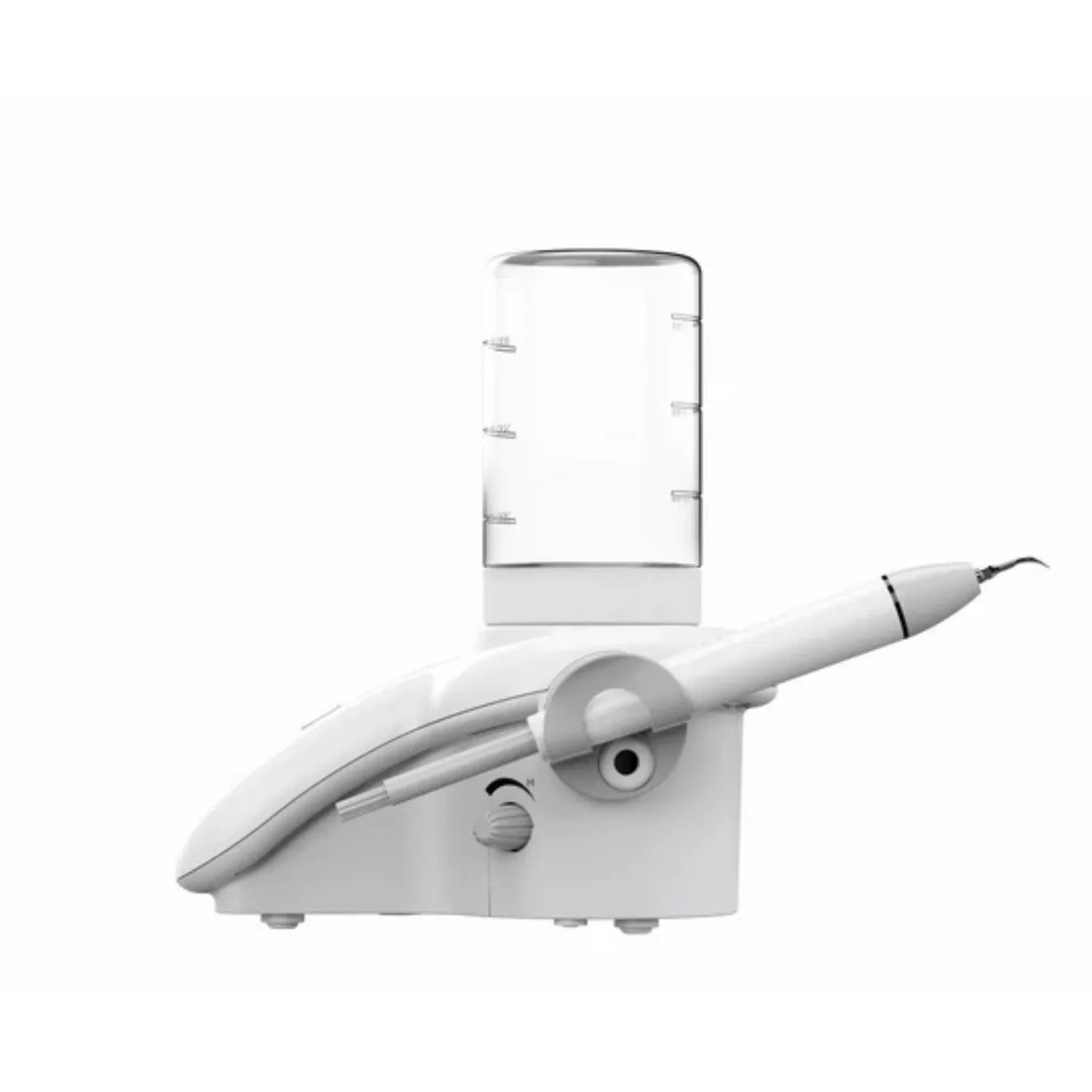

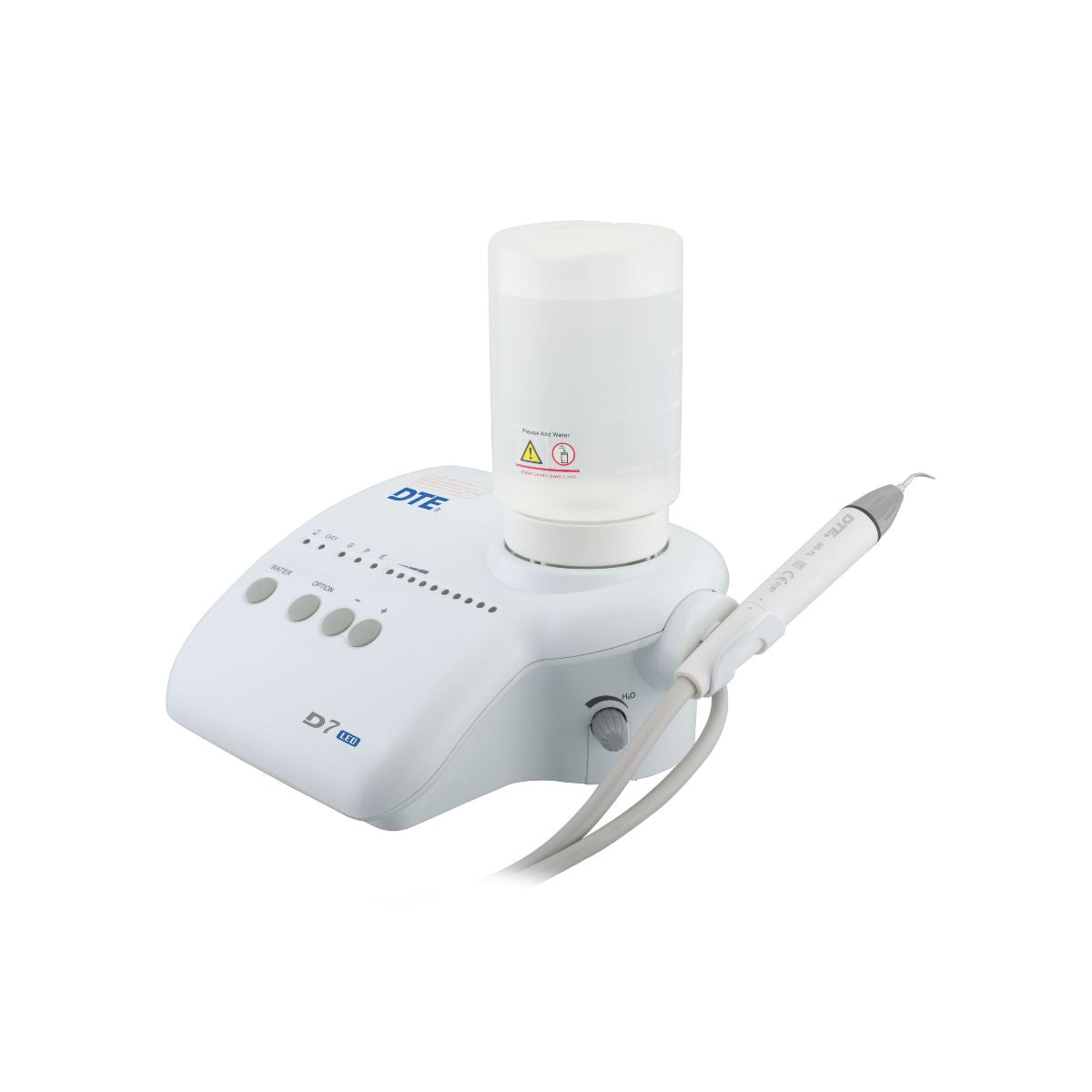

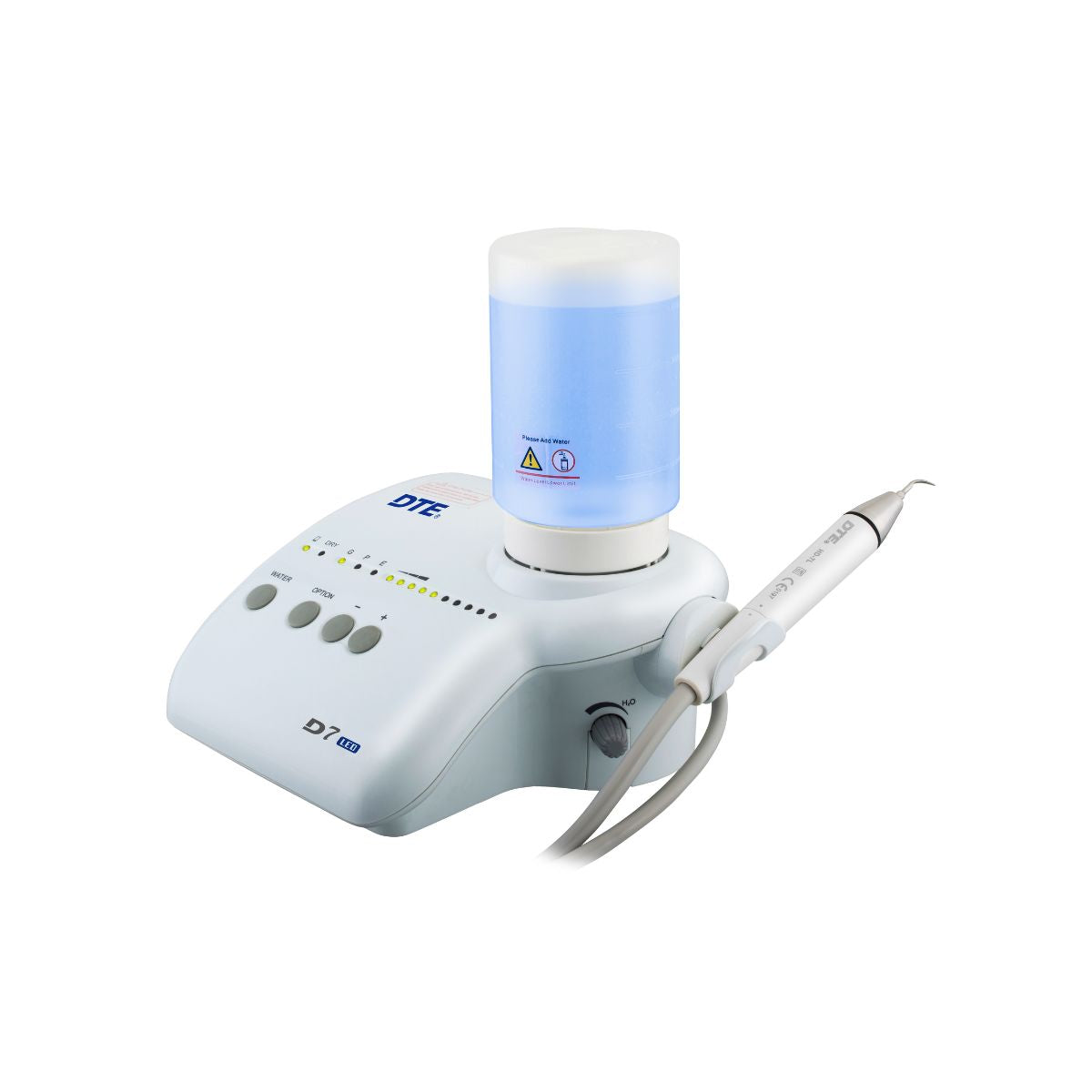

DTE D7 Ultrasonic Piezo Scaler Led and Non-Led

DTE D7 Piezo Aqua Ultrasonic Scaler | QUDENT

DTE D7 LED Ultrasonic Piezo Scaling Unit features anti-rot material applied to the internal water line system. Clinical solutions are applicable for automatic water supply mode, dramatically improving the performance of perio and endo functions.

Available in Both Led and Non-LED

Features:

• The water supply is from water bottles only
• Automatic frequency tracking system searches for the best working frequency
• Detachable handpiece and fully autoclavable
• Applicable for general, perio and endo functions
• Constant power output and more comfortable scaling
• No heating in the handpiece for greater patient comfort

Technical Specifications:

• Power input: 240v-50Hz/60Hz (1.2A Max)
• Main unit input: 30VDC (1.3A)
• Output primary tip vibration excursion: < 100 µm
• Tip vibration frequency: 28 kHz + 3 kHz
• Output half-excursion force: < 2N
• Output power: 3W–20W
• Water pressure: 0.1 Bar- 0.5 Bar (0.01MPa to 0.5MPa)
• Main unit weight: 1.35kg
• Adapter's weight: 0.3kg

Certification & Warranty:

• CE certified
• 12-month UK warranty

Packaging includes the following:

• 1 x D7 LED/ non-LED scaling unit
• 1 x DTE D7 LED or Non-LED ultrasonic scaler handpiece
• 1 x GD1, GD4, GD5, GD6, PD1, PD3, PD4, ED1(8 Scaler tips)
• 1 x Torque wrench
• 1 x Power pack
• 1 x Foot switch
• 1 x Water bottle
• 1 x Hose
• 1 x Operational menu
